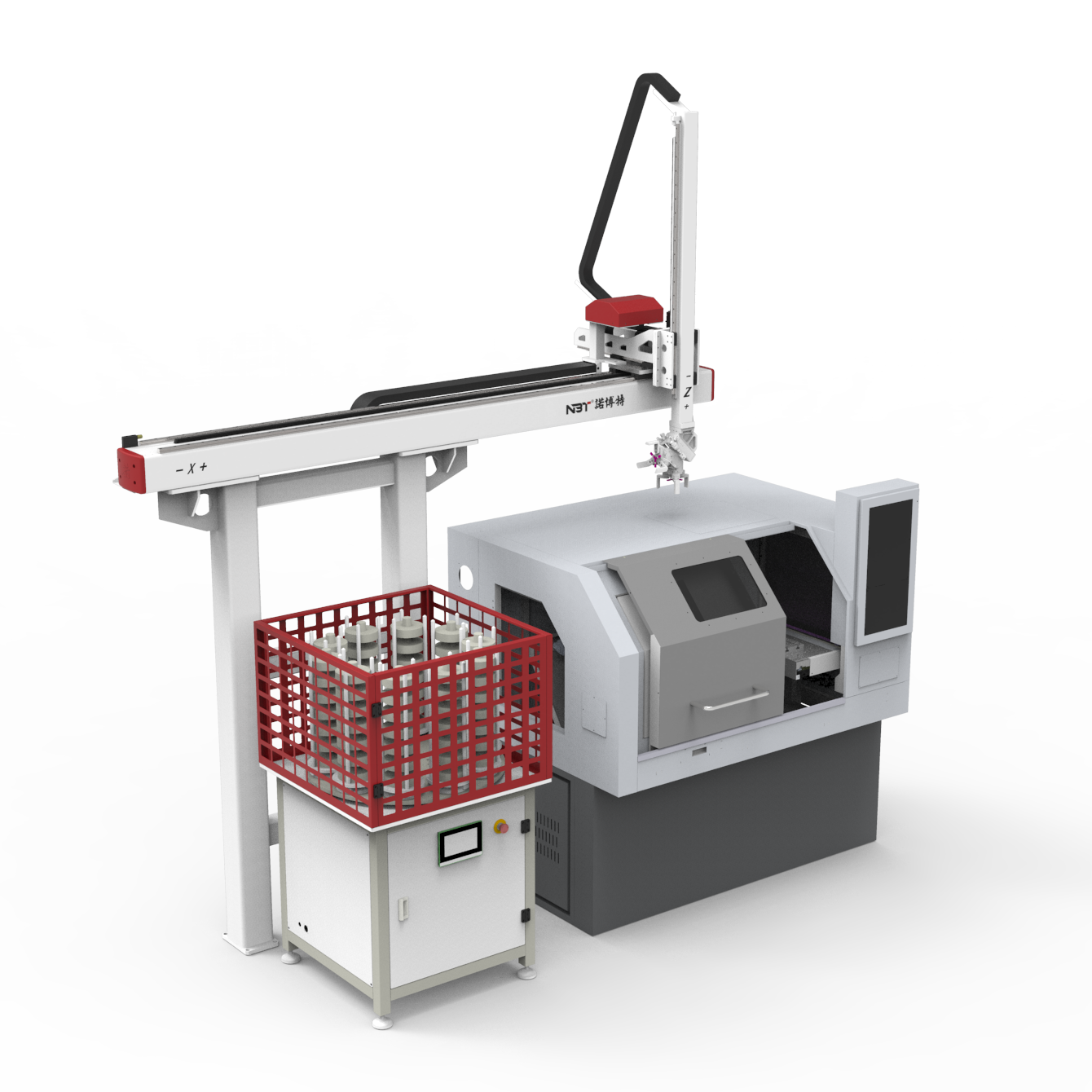

Robot For CNC Center
| project | SPRE3S-J-05 | SPRE3S-J-05 | SPRE3S-J-20 |
| Mechanical arm load (KG) | 2.5x2 | 5x2 | 10x2 |
| Horizontal travel (X-axis) | 1900/2300(customizable) | ||
| Pull stroke (Y-axis) | 350 | ||
| Arm stroke (Z-axis) | 1000 | ||
| Repetitive positioning accuracy (mm) | ±0.05 | ||
| X-axis moving speed (m/min) | 120 | ||
| Y-axis moving speed (m/min) | 90 | ||
| Z-axis arm stroke (m/min) | 90 | ||
| Maximum material weight (KG) | 2 | 4 | 8 |
| Drive Type | Servo+ reducer | ||
| Transmission method | Three axis gear rack | ||
