3 AXIS ROBOT-three section type
SUITABLE FOR 90-700T INJECTION MOLDING MACHINE LOAD 6KG
Product specifications
|
MODEL |
TYPE |
I.M.M.Range |
Stroke |
Gripper angle |
Max load (Includes gripper) |
Minimum take out time |
Drive system |
Working Air pressure |
Air Consumption |
The biggest power |
The largest net weight |
|||
|
Vertical |
Crosswise |
Crosswise |
Transverse |
|||||||||||
|
ton |
mm |
mm |
mm |
mm |
kg |
sec |
kgf/cm |
NL/cycle |
kg |
|||||
|
SPRE3S(5D)700T |
Telescopic type |
90-200 |
720 |
830 |
3S:710 |
1400 |
90 |
6 |
1.2 |
X,Y,Z AC Servo |
5-7 |
3S:1.0 |
AC220V± 10% 12A 50/60Hz(Single phase ) |
(3S)240 |
|
(5D)280 |
||||||||||||||
|
SPRE3S(5D)900T |
60-320 |
920 |
1030 |
3S:910 |
1600 |
1.4 |
3S:1.0 |
(3S)270 |
||||||
|
(5D)310 |
||||||||||||||
|
SPRE3S(5D)1100T |
250-470 |
1120 |
1030 |
3S:910 |
1800 |
1.5 |
3S:1.2 |
(3S)320 |
||||||
|
(5D)360 |
||||||||||||||

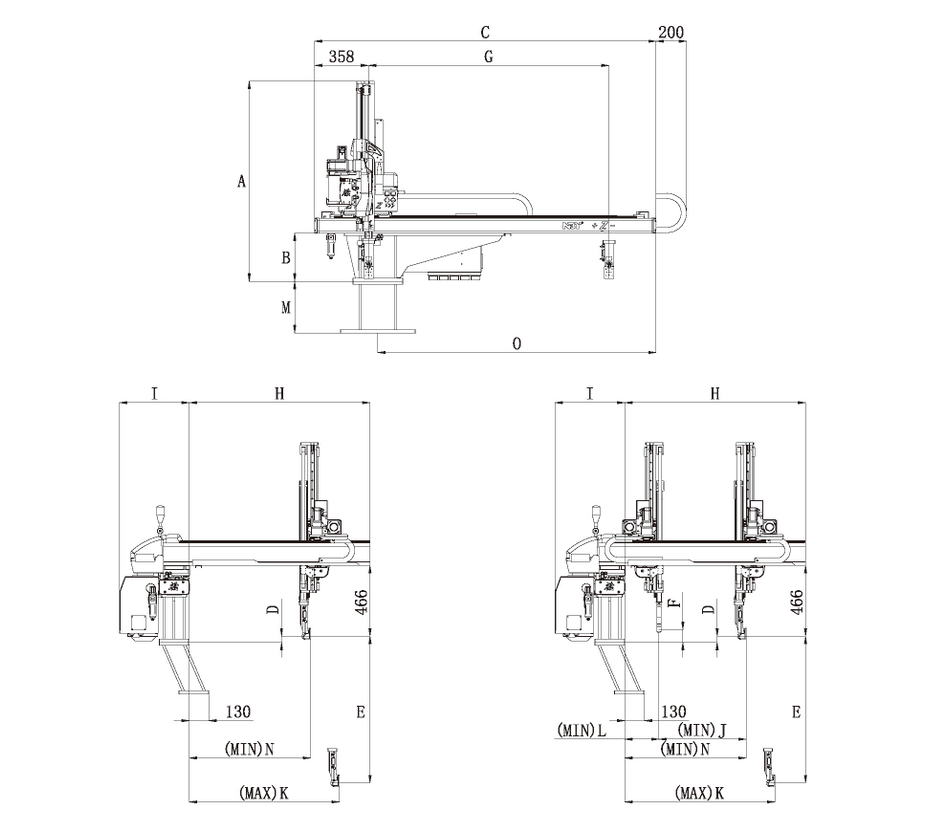

Dimensions
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
|
SPRE3S700T |
1070 |
400 |
2060 |
160 |
720 |
/ |
1430 |
1130 |
460 |
/ |
830 |
/ |
/ |
120 |
1670 |
|
SPRE5D700T |
1070 |
400 |
2060 |
160 |
720 |
160 |
1430 |
1130 |
460 |
115 |
830 |
320 |
435 |
1670 |
|
|
SPRE3S900T |
1170 |
400 |
2260 |
160 |
920 |
/ |
1590 |
1330 |
460 |
/ |
1030 |
/ |
120 |
1840 |
|
|
SPRE5D900T |
1170 |
400 |
2260 |
160 |
920 |
160 |
1590 |
1330 |
460 |
115 |
1030 |
320 |
435 |
1840 |
|
|
SPRE3S1100T |
1270 |
400 |
2660 |
160 |
1120 |
/ |
1900 |
1330 |
460 |
/ |
1030 |
/ |
120 |
2190 |
|
|
SPRE5D1100T |
1270 |
400 |
2660 |
160 |
1120 |
160 |
1900 |
1330 |
460 |
115 |
1030 |
320 |
435 |
2190 |
