3 AXIS and 5 Axis ROBOT-telescopic type
SUITABLE FOR 90-700TINJECTION MOLDINGMACHINELOAD 6KG
Product specifications
|
MODEL |
TYPE |
I.M.M.Range |
Stroke |
Gripper angle |
Max load (Includes gripper) |
Minimum take out time |
Drive system |
Working Air pressure |
Air Consumption |
The biggest power |
The largest net weight |
||||
|
Vertical |
Crosswise |
Double arms Crosswise |
Single arm Crosswise |
Transverse |
|||||||||||
|
ton |
mm |
mm |
mm |
mm |
mm |
kg |
sec |
kgf/cm |
NL/cycle |
kg |
|||||
|
SPRE3S(5D)700W |
Telescopic type |
90-200 |
700 |
3S:830 |
500 |
710 |
1360 |
90 |
6 |
1.3 |
X,Y,Z AC Servo motor |
5-7 |
3S:1.0 |
AC220V± 10% 12A 50/60Hz(Single phase ) |
(3S)236 |
|
(5D)256 |
|||||||||||||||
|
SPRE3S(5D)900W |
160-320 |
900 |
3S:1030 |
700 |
910 |
1540 |
1.5 |
3S:1.0 |
(3S)256 |
||||||
|
(5D)290 |
|||||||||||||||
|
SPRE3S(5D)1100W |
250-470 |
1100 |
3S:1160 |
850 |
1040 |
1800 |
1.6 |
3S:1.2 |
(3S)316 |
||||||
|
(5D)340 |
|||||||||||||||
|
SPRE3S(5D)1300W |
380-700 |
1300 |
3S:1210 |
900 |
1090 |
2000 |
1.7 |
3S:1.2 |
(3S)356 |
||||||
|
(5D)380 |
|||||||||||||||

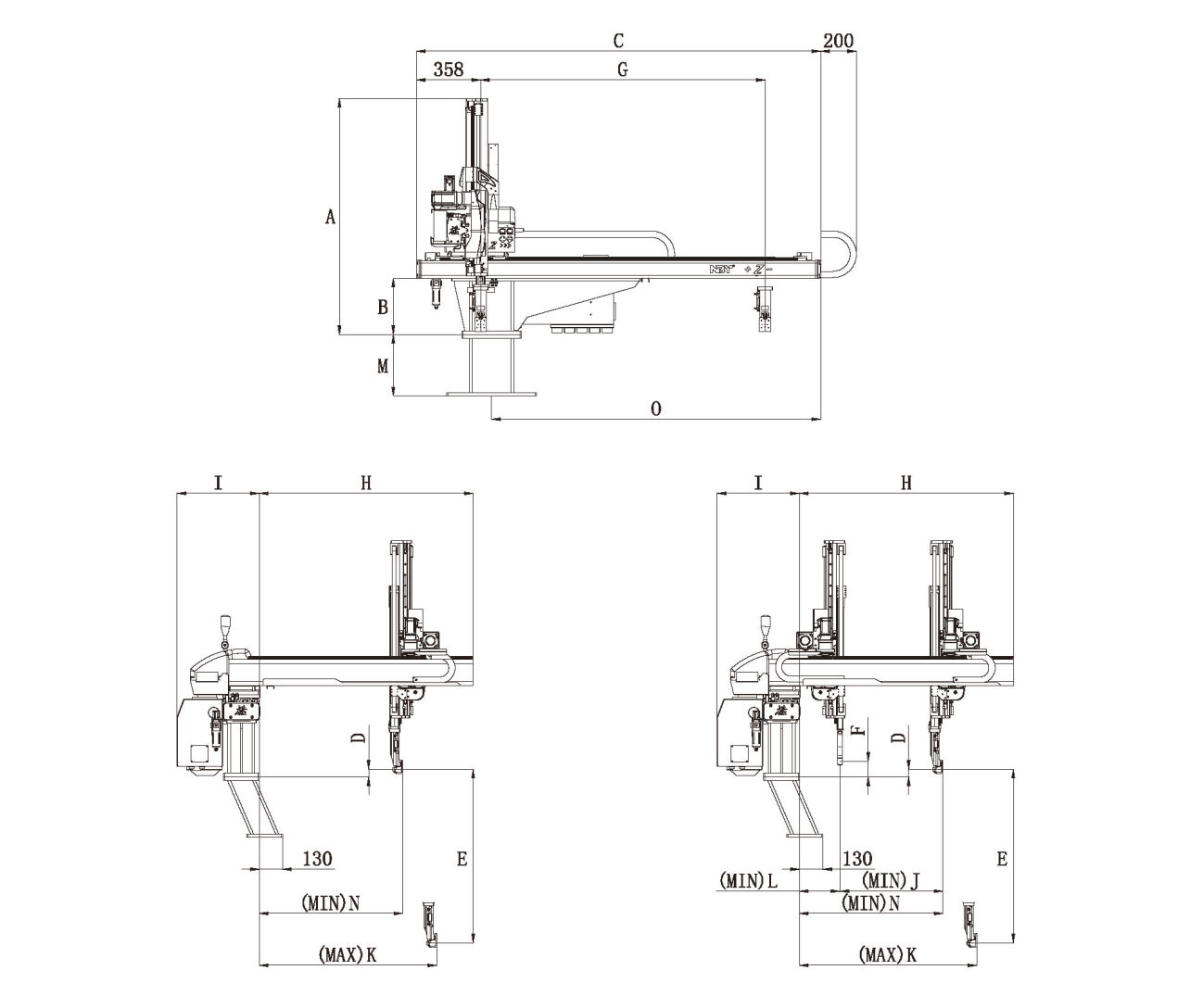

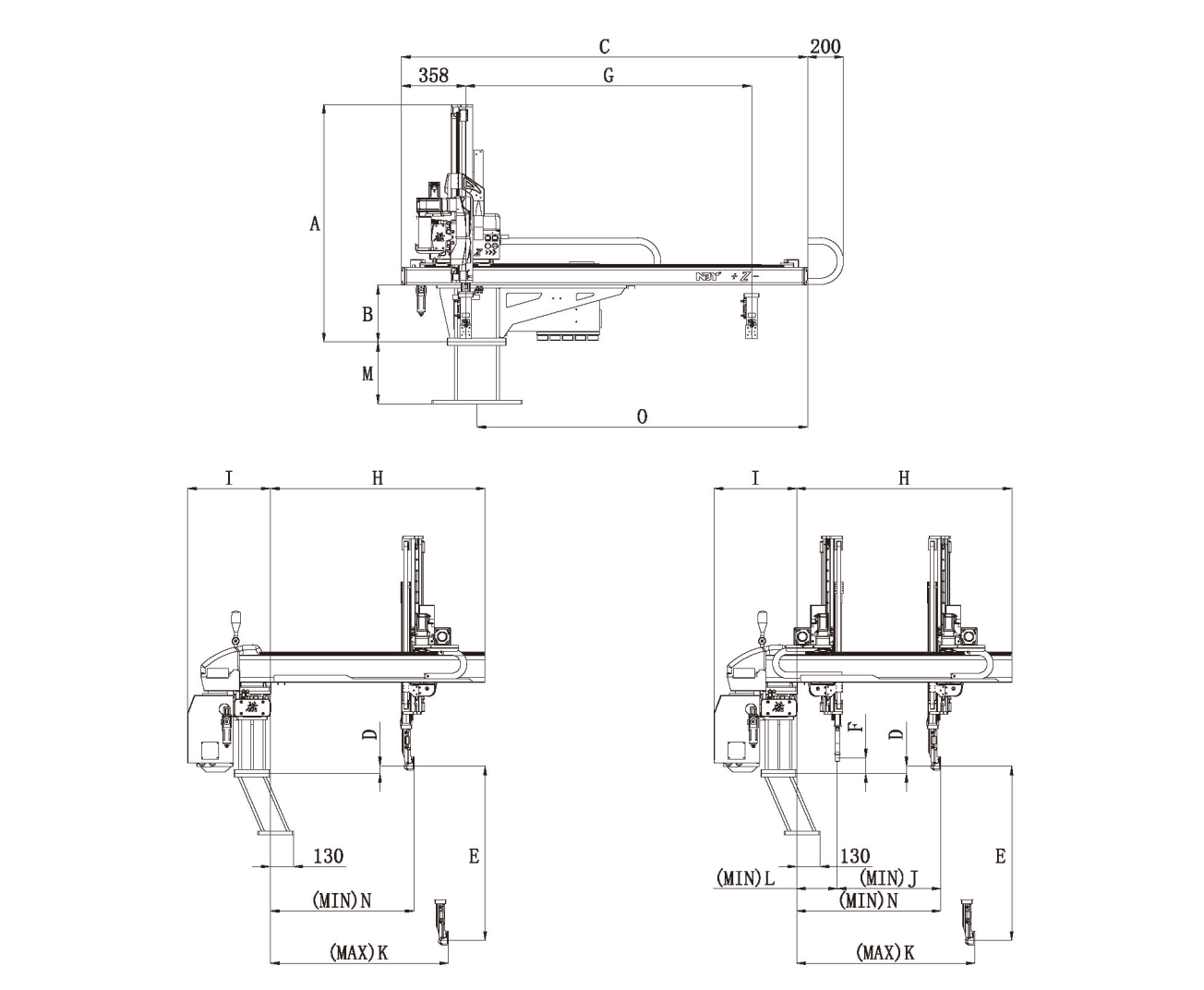

Dimensions
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
|
SPRE3S700W |
1210 |
317 |
2020 |
70 |
730 |
/ |
1390 |
1000 |
460 |
/ |
830 |
/ |
/ |
120 |
1640 |
|
SPRE5D70OW |
1210 |
317 |
2020 |
70 |
730 |
70 |
1390 |
1000 |
460 |
115 |
830 |
227 |
345 |
1640 |
|
|
SPRE3S900W |
1330 |
317 |
2200 |
67 |
970 |
/ |
1570 |
1210 |
460 |
/ |
1030 |
/ |
120 |
1820 |
|
|
SPRE5D900W |
1330 |
317 |
2200 |
67 |
970 |
85 |
1570 |
1210 |
460 |
115 |
1030 |
227 |
345 |
1820 |
|
|
SPRE3S1100W |
1525 |
367 |
2660 |
85 |
1150 |
/ |
1900 |
1360 |
460 |
/ |
1160 |
/ |
120 |
2190 |
|
|
SPRE5D1100W |
1525 |
367 |
2660 |
85 |
1150 |
91 |
1900 |
1360 |
460 |
115 |
1160 |
227 |
345 |
2190 |
|
|
SPRE3S1300W |
1645 |
367 |
2860 |
85 |
1390 |
/ |
2120 |
1410 |
460 |
/ |
1210 |
/ |
120 |
2393 |
|
|
SPRE5D1300W |
1645 |
367 |
2860 |
85 |
1390 |
91 |
2120 |
1410 |
460 |
115 |
1210 |
227 |
345 |
2393 |
SUITABLE FOR 250-700T INJECTION MOLDING MACHINE LOAD IOKG
Product specifications
|
MODEL |
TYPE |
I.M.M.Range |
Stroke |
Gripper angle |
Max load (Includes gripper) |
Minimum take out time |
Drive system |
Working Air pressure |
Air Consumption |
The biggest power |
The largest net weight |
||||
|
Vertical |
Crosswise |
Double arms Crosswise |
Single arm Crosswise |
Transverse |
|||||||||||
|
ton |
mm |
mm |
mm |
mm |
mm |
kg |
sec |
kgf/cm |
NL/cycle |
kg |
|||||
|
SPRE3S(5D)1100W |
Telescopic type |
250-470 |
1100 |
3S:1160 |
850 |
1040 |
1800 |
90 |
10 |
1.6 |
X,Y,Z AC Servo motor |
5-7 |
3S:1.2 |
AC380V± 10% 12A 50/60Hz(Three phase ) |
(3S)336 |
|
(5D)360 |
|||||||||||||||
|
SPRE3S(5D)1300W |
380-700 |
1300 |
3S:1210 |
900 |
1090 |
2000 |
1.7 |
3S:1.2 |
(3S)376 |
||||||
|
(5D)400 |
|||||||||||||||
Dimensions
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
|
SPRE3S1100W |
1500 |
367 |
2616 |
80 |
1160 |
/ |
1920 |
1353 |
460 |
/ |
1160 |
/ |
/ |
120 |
2202 |
|
SPRE5D1100W |
1500 |
367 |
2616 |
80 |
1160 |
60 |
1920 |
1353 |
460 |
115 |
1160 |
227 |
345 |
2202 |
|
|
SPRE3S1300W |
1580 |
367 |
2816 |
80 |
1310 |
/ |
2120 |
1410 |
460 |
/ |
1210 |
/ |
120 |
2400 |
|
|
SPRE5D1300W |
1580 |
367 |
2816 |
80 |
1310 |
60 |
2120 |
1410 |
460 |
115 |
1210 |
227 |
345 |
2400 |
