HIGH SPEED ROBOT
SUITABLE FOR 470-900T INJECTION MOLDING MACHINE LOAD 10-15KG
Product specifications
|
MODEL |
TYPE |
I.M.M.Range |
Stroke |
Gripper angle |
Max load (Includes gripper) |
Minimum take out time |
Drive system |
Working Air pressure |
Air Consumption |
The biggest power |
The largest net weight |
|||
|
Vertical |
Crosswise |
Crosswise |
Transverse |
|||||||||||
|
ton |
mm |
mm |
mm |
mm |
kg |
sec |
kgf/cm |
NL/cycle |
kg |
|||||
|
SPRT3S1200I |
Telescopic type |
320-530 |
1200 |
920 |
630 |
1920 |
90 |
10 |
2.9 |
X,Y,Z AC Servo |
5-7 |
2 |
AC380V± 10% 12A 50/60Hz(Three phase ) |
1000 |
|
SPRT3S1200W |
320-530 |
1200 |
920 |
630 |
1920 |
2.9 |
||||||||
|
SPRT3S1400W |
530-800 |
1480 |
1490 |
1070 |
2130 |
15 |
2.3 |
|||||||
|
SPRT3S1600W |
530-900 |
1600 |
1550 |
1200 |
2300 |
2.5 |
||||||||
|
SPRT3S1800W |
700-1250 |
1800 |
1615 |
1195 |
2650 |
2.8 |
||||||||

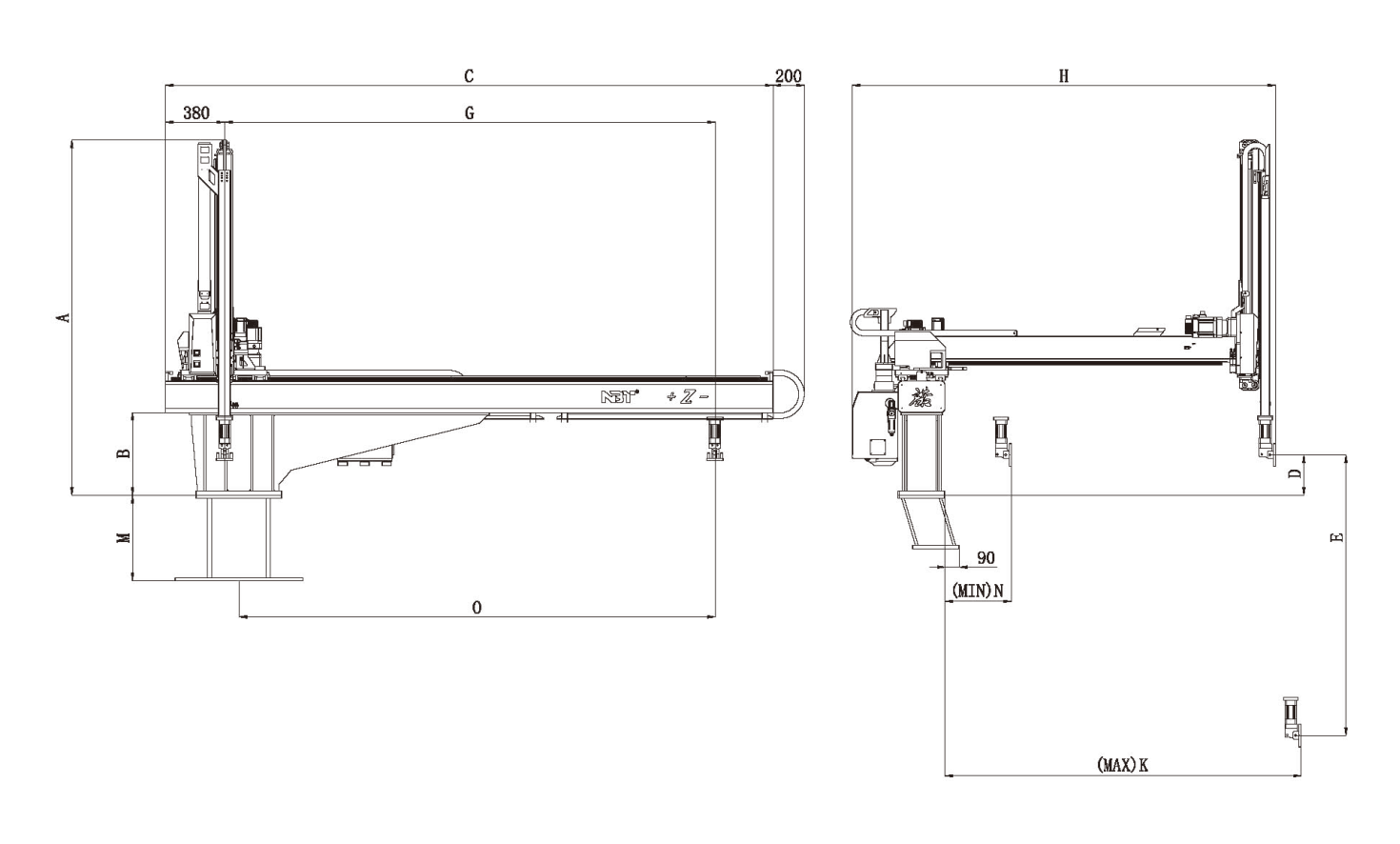

Dimensions
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
L |
M |
N |
O |
|
SPRT3S1200I |
2170 |
365 |
2555 |
185 |
1230 |
/ |
1960 |
/ |
945 |
/ |
920 |
/ |
/ |
290 |
2095 |
|
SPRT3S1200W |
1620 |
365 |
2555 |
185 |
1230 |
/ |
1960 |
/ |
945 |
/ |
920 |
/ |
290 |
2095 |
|
|
SPRT3S1400W |
1900 |
370 |
2860 |
15 |
1490 |
/ |
2130 |
/ |
/ |
/ |
1490 |
/ |
420 |
2320 |
|
|
SPRT3S1600W |
2050 |
370 |
3060 |
15 |
1690 |
/ |
2300 |
/ |
/ |
/ |
1550 |
/ |
350 |
2210 |
|
|
SPRT3S1800W |
2200 |
370 |
3420 |
225 |
1890 |
/ |
2650 |
/ |
/ |
/ |
1615 |
/ |
420 |
2560 |
