SPRUE PICKER-cylinder model
SPRUE PICKER-cylinder model
Product specifications
|
MODEL |
TYPE |
I.M.M Range |
Stroke |
Swing angle |
Gripper rotation angle |
Max load (Includes gripper) |
Minimum take out time |
Drive system |
Working Air pressure |
Consumption |
The biggest power |
The largest net weight |
||
|
Vertical |
Crosswise |
Crosswise |
||||||||||||
|
ton |
mm |
mm |
mm |
kg |
sec |
kgf/cm |
NL/cycle |
kg |
||||||
|
SPRSS600I |
Single |
90-200 |
610 |
150 |
220 |
90 |
90 |
3 |
1.5 |
Pneumatic |
5-7 |
6.8 |
AC220V± 10%B 12A 50/60Hz(Single phase) |
68 |
|
SPRSS700I |
90-250 |
730 |
150 |
280 |
1.5 |
7.2 |
68 |
|||||||
|
SPRS1S600I |
90-200 |
670 |
150 |
220 |
1.5 |
5.2 |
68 |
|||||||

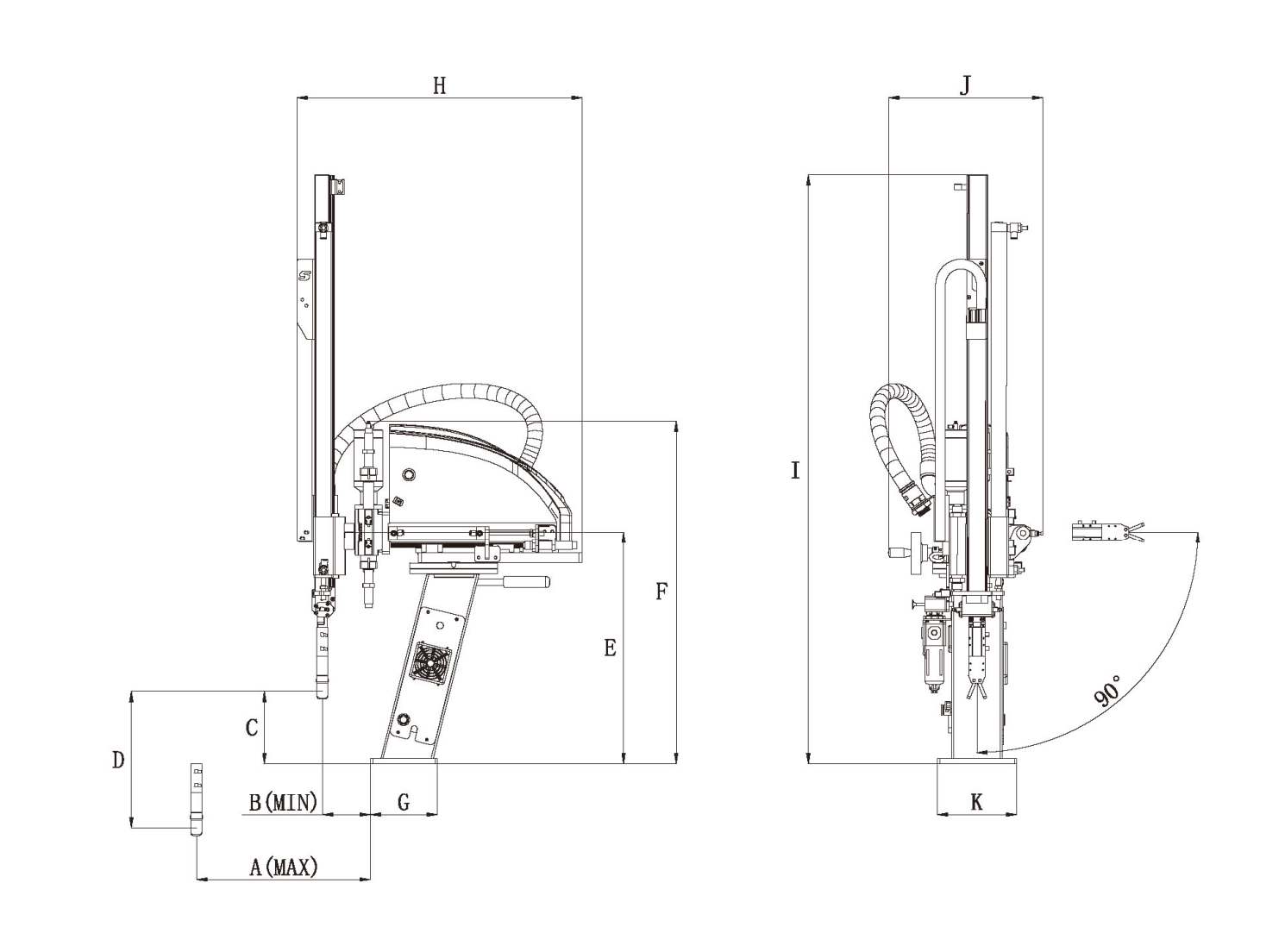

Dimensions
|
MODEL |
A |
B |
C |
D |
E |
F |
G |
H |
I |
J |
K |
|
SPRSS600I |
270 |
50 |
175 |
610 |
552 |
820 |
160 |
655 |
1290 |
360 |
190 |
|
SPRSS700I |
330 |
50 |
175 |
730 |
552 |
820 |
160 |
680 |
1410 |
360 |
190 |
|
SPRS1S600I |
280 |
60 |
175 |
670 |
550 |
860 |
160 |
685 |
1320 |
425 |
190 |
