    SUITABLE FOR 90-470T INJECTION MOLDING MACHINE LOAD 6KG

    Product specifications

    MODEL TYPE I.M.M.Range Stroke Gripper angle Max load (Includes gripper) Minimum take out time Drive system Working Air pressure Air Consumption The biggest power The largest net weight
    Vertical Crosswise Double arms Crosswise Single arm Crosswise Transverse
    ton mm mm mm mm mm kg sec kgf/cm NL/cycle kg
    SPRE3S(5D)700I Single stage 90-200 700 3S:680
    5D:540    		 400 580 1360 90 6 1.7 X,Y,Z AC Servo motor 5-7 3S:1.0
    5D:1.5    		 AC220V± 10% 12A 50/60Hz(Single phase) (3S)228
    (5D)250
    SPRE3S(5D)900I 160-320 900 3S:880
    5D:740    		 600 780 1540 1.8 3S:1.0
    5D:1.7    		 (3S)248
    (5D)270
    SPRE3S(5D)1100I 250-470 1100 3S:1080
    5D:940    		 830 950 1800 2.1 3S:1.0
    5D:1.7    		 (3S)298
    (5D)320

    Dimensions

    Dimensions
    MODEL A B C D E F G H I J K L M N O
    SPRE3S700I 1585 317 2020 115 750 131 1390 800 460 / 680 / / 115 1640
    SPRE5D700I 1585 317 2020 115 750 131 1390 800 460 135 680 140 300 1640
    SPRE3S900I 1785 317 2200 115 950 131 1570 1000 460 / 880 / 115 1820
    SPRE5D900I 1785 317 2200 115 950 131 1570 1000 460 135 880 140 300 1820
    SPRE3S1100I 2000 367 2610 115 1130 155 1800 1200 460 / 1050 / 100 2190
    SPRE5D1100I 2000 367 2610 115 1130 155 1800 1200 460 135 1050 165 310 2190

    SUITABLE FOR 160-470T INJECTION MOLDING MACHINE LOAD IOKG

    Product specifications

    MODEL TYPE I.M.M.Range Stroke Gripper angle Max load (Includes gripper) Minimum take out time Drive system Working Air pressure Air Consumption The biggest power The largest net weight
    Vertical Crosswise Double arms Crosswise Single arm Crosswise Transverse
    ton mm mm mm mm mm kg sec kgf/cm NL/cycle kg
    SPRE3S(5D)900I Single stage 160-320 900 3S:770
    5D:650    		 650 760 1600 90 10 1.8 X,Y,Z AC Servo motor 5-7 1.0 AC220V± 10% 12A 50/60Hz(Single phase) (3S)286
    (5D)310
    SPRE3S(5D)1100I 250-470 1100 3S:970
    5D:850    		 850 960 1800 1.9 (3S)326
    (5D)350

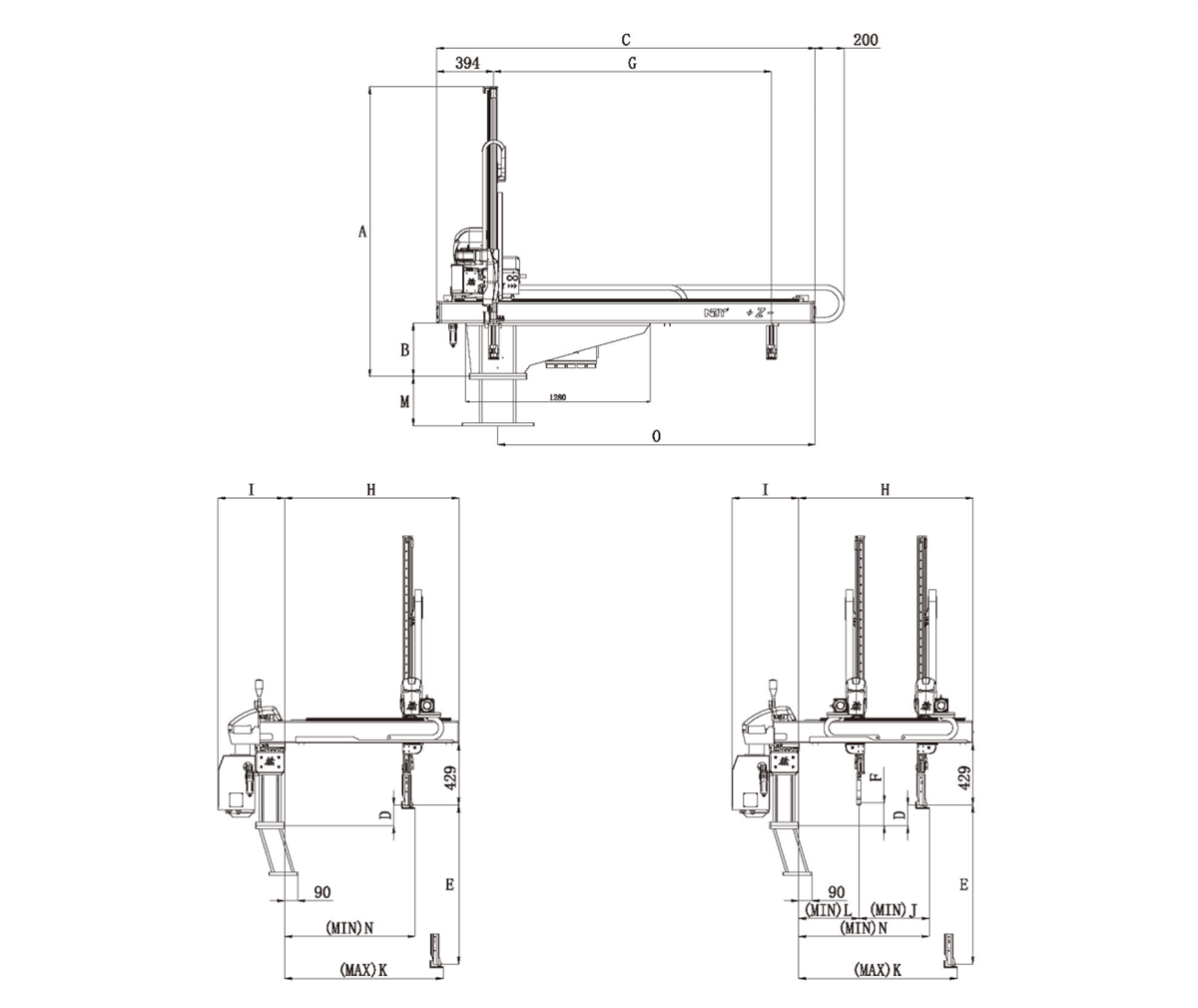

    Dimensions

    IOKG
    MODEL A B C D E F G H I J K L M N O
    SPRE3S900I 1780 317 2260 75 950 / 1650 1045 459.5 / 950 155 / 135 1875
    SPRE5D900I 1780 317 2260 75 950 95 1650 1045 459.5 110 950 155 280 1875
    SPRE3S1100I 2000 367 2615 140 1130 / 1900 1200 459.5 / 1100 155 135 2190
    SPRE5D1100I 2000 367 2615 140 1130 160 1900 1200 459.5 110 1100 155 280 2190
    SPRE3S1300I 2200 367 2815 140 1330 / 2100 1400 459.5 / 1300 155 135 2390
    SPRE5D1300I 2200 367 2815 140 1330 160 2100 1400 459.5 110 1300 155 280 2390
