What a Servo Robot Arm Brings to Injection Molding

Before we compare gripper types, it is worth establishing what a servo robot arm actually changes about an injection molding cell. In my early years, many factories ran their molding cells without any automation — manual extraction by operators standing at the press, timing their grabs, and placing parts into trays. The human cost was not just labor — it was consistency. A human operator performing 600-800 extraction cycles per shift accumulates fatigue that directly drives increased part damage and misplacement rates in the last two hours of the shift.

A servo robot arm for injection molding replaces that human variability with deterministic motion. The servo motor drives each axis to a programmed position with sub-millimeter repeatability, every single cycle, for every shift, for years. That consistency compounds over time. A machine running 6,000 cycles per day, 300 days per year, at a positional repeatability of +/-0.1mm, produces dramatically more consistent cycle times and part positions than any human operator.

The other major advantage is cycle time reduction. Human operators typically require 2-5 seconds per extraction cycle. A properly programmed servo robot arm completes the same sequence in 1.5-3.5 seconds, depending on part size and reach distance. At a production rate of 60 parts per hour, that 2-second per cycle saving translates to 120 additional parts per hour — a 20% throughput improvement that requires no change to the molding machine itself.

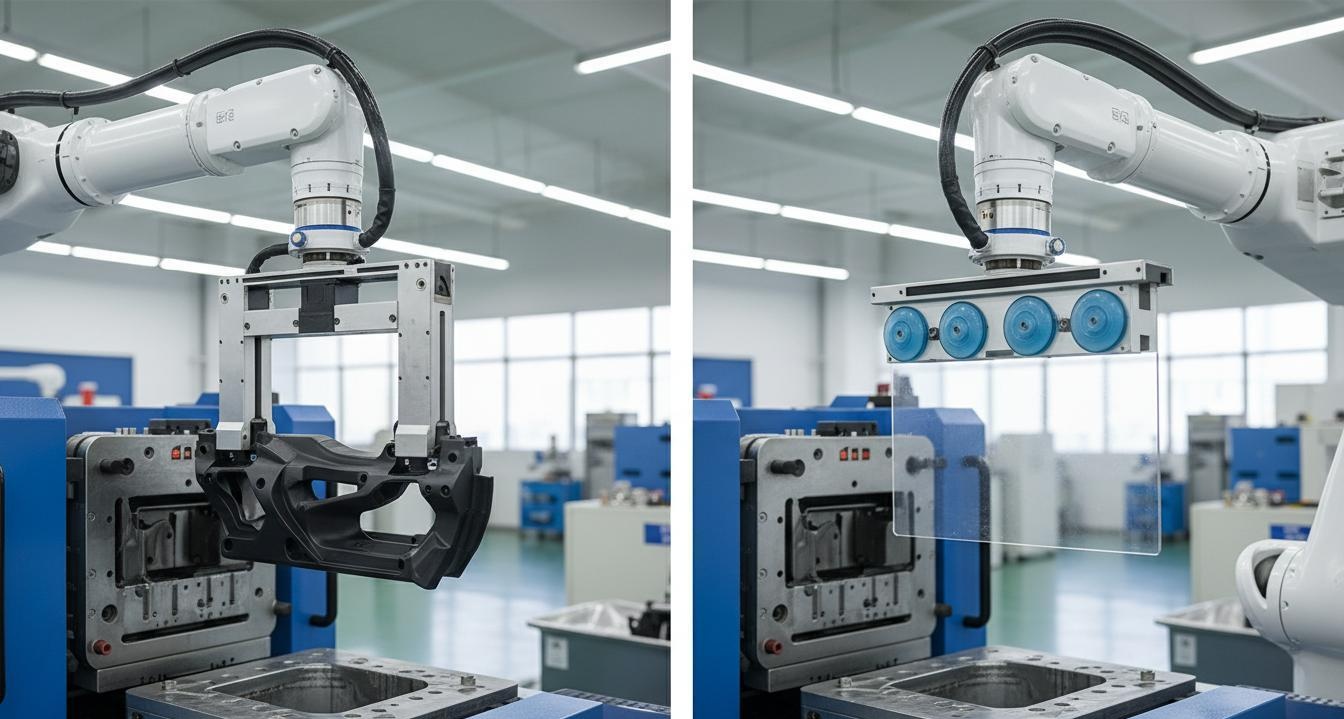

Pneumatic Gripper vs Vacuum Suction: The Fundamental Difference

The core difference between these two end-effector technologies is how they generate holding force. A pneumatic gripper uses compressed air (typically 4-8 bar) to actuate a mechanical mechanism — usually collets, finger-style grippers, or angular grip jaws — that physically encloses the part. A vacuum suction cup uses a venturi ejector to create negative pressure at a flexible cup seal, atmospheric pressure does the holding work.

This fundamental difference drives every subsequent performance characteristic. Because pneumatic grippers generate holding force mechanically, their holding force is largely independent of part surface condition. Vacuum cups depend entirely on the integrity of the seal between the cup and the part surface — which means surface texture, porosity, temperature, and the presence of holes or undercuts all directly affect whether the vacuum will hold.

Pneumatic Gripper Mechanics

A pneumatic gripper works by routing compressed air through a valve into a piston chamber, which drives a mechanical linkage that closes gripper fingers or collets around the part. The holding force is determined by air pressure and the friction coefficient between the gripper jaw surface and the part. At 6 bar supply pressure, a standard two-finger parallel gripper typically generates 20-50N of holding force per finger — meaning a dual-finger gripper generates 40-100N total.

The key characteristic for injection molding applications is that pneumatic gripper holding force is positive — the part is physically held. It does not depend on atmospheric pressure, surface flatness, or seal integrity. A part with a through-hole can be held by a gripper without any loss of holding force. A part at 80 degrees C surface temperature can be held without the gripper failing due to thermal seal degradation.

The trade-off is complexity and maintenance. Pneumatic systems require compressed air supply, filter-regulator-lubricator (FRL) units, solenoid valves, and pneumatic tubing. All of these components require periodic maintenance. Gripper fingers wear at contact surfaces and need replacement. O-rings degrade over time. Air moisture is the enemy of consistent pneumatic performance — without a proper air dryer, moisture in the airline causes internal corrosion that degrades valve seals and cylinder performance.

Vacuum Suction Mechanics

A vacuum suction cup creates negative pressure via a venturi ejector — a device that uses compressed air flowing through a constricted passage to generate a low-pressure zone. This negative pressure pulls a flexible silicone or rubber cup against the part surface, and atmospheric pressure (approximately 101.3 kPa at sea level) pushes the cup firmly against the part. The holding force is proportional to the effective seal area multiplied by the pressure differential.

For a 40mm diameter suction cup with an effective seal diameter of 30mm, the effective area is approximately 707 square millimeters. At 80% vacuum (approximately 20 kPa differential), the holding force is roughly 14N — enough to reliably hold a 200-300 gram part against gravity during extraction and swing motions. Increase the cup size to 60mm effective diameter and the holding force scales to approximately 57N at the same vacuum level.

The critical limitation is that vacuum suction holding force drops to zero the moment the seal is broken. A hole in the part surface, an undercut that disrupts the cup seal, a textured surface that prevents full cup contact, or even a radius edge that causes the cup to tilt and leak — all of these conditions cause immediate vacuum loss. Unlike a mechanical gripper, where holding force degrades gradually as fingers wear, vacuum suction has a binary failure mode: it holds or it drops.

Comparative Performance Analysis

The table above summarizes the key performance trade-offs I have measured across dozens of production cells. Note the air consumption difference — pneumatic grippers consume compressed air continuously during operation, while vacuum suction only pulses during the activation event. Over a full production shift, this difference in air consumption can translate to meaningful operating cost differences in high-volume cells.

Cycle Time Optimization: Where Servo Robot Arms Deliver ROI

For most injection molding operations, cycle time is the primary driver of financial return on automation investment. The math is straightforward: if your molding machine produces 60 parts per hour, and your robot extraction saves 1.5 seconds per cycle, that is 90 additional parts per hour — a 25% throughput improvement. At $0.50 margin per part and 6,000 production hours per year, that is $270,000 in additional annual margin from a single cell optimization.

Let me share the specific optimization levers I actually pull when configuring a new servo robot arm cell:

1. Path Optimization: Reduce Unnecessary Travel

The first thing I do when programming a new robot cell is review the motion path. Most default robot programming sends the arm to a neutral home position between extraction and placement — an unnecessary intermediate waypoint that adds 0.5-1.5 seconds to every cycle. I re-program the arm to move directly from the mold extraction point to the part placement point using the most compact arc or linear path the cell geometry allows.

I also look for simultaneous multi-axis motion. Many mid-range servo robot arms execute axes sequentially by default — the arm extends, then the wrist rotates, then the gripper activates. High-performance servo robot arms can coordinate all three motions simultaneously, reducing total cycle time by 0.3-0.8 seconds per cycle. ROBOT open-type servo robots support coordinated multi-axis motion that I routinely leverage in medical device production cells.

2. Gripper Selection: Matching End-Effector to Part Geometry

Gripper selection is where I see the most unforced errors in robot cell configuration. Factories default to vacuum cups because they are simple and inexpensive, but for parts with complex geometry, that simplicity costs cycles. If your vacuum gripper fails to seal on 1 in 50 parts due to surface texture or a molding flash ridge, and you lose an average of 45 seconds per failure incident, your failure rate costs you 0.9 seconds per cycle in effective cycle time.

My decision tree for gripper selection:

• Part has flat, large, smooth top surface: Vacuum suction is almost always the right answer. A 50mm silicone cup handles most medical device housings and trays efficiently.
• Part has thin walls, vertical features, or complex 3D geometry: Pneumatic gripper with finger-style jaws. The gripper needs to contact the part at multiple stable points, not rely on a single seal.
• Part has a flat surface but also has holes or undercuts: Hybrid approach. Vacuum cup on the large flat area, small gripper fingers on the edge or flange to prevent rotation and lateral shift.
• Part weighs over 3kg: Pneumatic gripper is almost always necessary. Most vacuum cups lose reliability above 3-5kg working load due to seal stress and vibration during extraction.

3. Mold Open Time Synchronization

One of the most impactful optimizations is programming the robot to begin its extraction sequence as the mold opens, rather than waiting for full mold open. For a typical injection mold opening sequence, the robot can begin its entry into the cavity within 0.3-0.5 seconds of the mold starting to separate, using the parting plane as initial clearance before the core and cavity fully separate.

This sounds obvious, but in practice I find that most factory robot programs use a delay timer that waits for a fixed mold-open signal before starting the robot cycle. That fixed delay is usually set conservatively during initial setup and never optimized. By connecting the robot controller to the press PLC and reading the actual mold position signal, the robot can begin its motion 0.3-0.8 seconds earlier per cycle — without sacrificing safety.

4. Parting Line Extraction vs. Full Open Position

For two-plate molds (the most common configuration), extracting parts at the parting line — the moment the two mold halves separate — versus waiting for full open can save 0.8-1.5 seconds per cycle. This requires the robot to enter the mold cavity earlier in the opening stroke, which demands precise servo control and proper cavity protection programming.

ROBOT open-type servo robots support early-entry extraction mode, where the robot arm enters the cavity at a controlled speed proportional to the mold opening stroke. This is one of the key differentiators between entry-level and production-grade servo robot arms for injection molding applications.

Maintenance: The Hidden Cycle Time Killer

In my experience, the biggest unacknowledged cause of lost cycle time in robot-automated molding cells is deferred maintenance on pneumatic components. When a gripper starts to wear, the fingers no longer close to their programmed position. The part sits slightly looser in the gripper. The robot programmer notices increased cycle time variance and responds by slowing down the extraction speed to prevent drops. The slower speed costs 0.5-1.0 seconds per cycle.

Here is the maintenance schedule I recommend for pneumatic gripper systems:

• Daily: Visual inspection of gripper fingers for wear marks, check air line for moisture (condensation in airlines is the first sign of FRL failure)
• Weekly: Test grip force with a force gauge, verify all mounting bolts are tight, check solenoid valve response time with an oscilloscope
• Monthly: Replace O-rings on gripper cylinders, inspect and replace worn fingers, clean and lubricate sliding surfaces
• Every 6 months: Full FRL replacement (filter element, regulator diaphragm, lubricator reservoir), recalibrate grip force

For vacuum suction systems, maintenance is simpler but no less important. Check suction cups for cracks or deformation (replace every 3-6 months in high-volume cells). Verify venturi ejector performance by measuring evacuation time with a vacuum gauge. A venturi ejector that takes more than 150ms to reach 80% vacuum is a candidate for replacement or cleaning.

The Hybrid Approach: Best of Both Worlds

In my practice, the most common configuration for medical device molding cells is a hybrid end-effector that combines vacuum suction cups on the primary flat surface of the part with small pneumatic finger grippers positioned to engage the part edges or flanges. This approach captures the speed advantage of vacuum suction (50-150ms activation) while maintaining the security of mechanical grip for lateral stability.

I designed a hybrid end-effector for a catheter hub molding cell that eliminated a chronic problem: the vacuum cup would sometimes lose seal during extraction when the part still had a small amount of flash on the seating surface. By adding two small 10mm pneumatic fingers that gripped the part flange at the 2 and 8 o-clock positions, the part was held securely regardless of flash condition, and the vacuum cup handled the primary extraction force. The result was a 40% reduction in part drop incidents and a 0.7 second per cycle improvement in effective cycle time.

Key specs for ROBOT open-type servo robot arms: Our open-type robot series supports simultaneous control of up to 4 end-effector channels (combining vacuum valve outputs and pneumatic gripper solenoid signals), with integrated sensor feedback for part presence detection. The proprietary robot controller supports drag-and-drop programming for hybrid end-effector sequences, making cell commissioning significantly faster than traditional PLC-based robot control systems. Learn more about ROBOT open-type servo robots here.

Conclusion

The choice between pneumatic gripper and vacuum suction for your servo robot arm for injection molding is not a one-size-fits-all decision. The right answer depends on your specific part geometry, material, production volume, and cell configuration. In my experience, factories that treat gripper selection as a binary decision miss significant optimization opportunities that come from understanding the hybrid approach and matching end-effectors to actual part conditions.

My practical recommendation: start by analyzing your part geometry objectively. If your part has a large flat top surface, is non-porous, weighs under 3kg, and has no holes or undercuts on the primary seating surface, vacuum suction is likely your most efficient choice. For everything else — complex geometry, textured surfaces, parts with holes or undercuts, heavy parts — a pneumatic gripper or hybrid configuration will deliver more reliable and ultimately faster performance.

Whatever configuration you choose, invest in preventive maintenance. A well-maintained pneumatic gripper operating at peak efficiency delivers 0.5-1.0 seconds per cycle faster than a neglected gripper with worn fingers. That maintenance dividend compounds daily over years of production.
